GARAGE TYPE

Puzzle type, PSH


Two levels
Multi-levels
Pit type
No avoidance

RENDERING

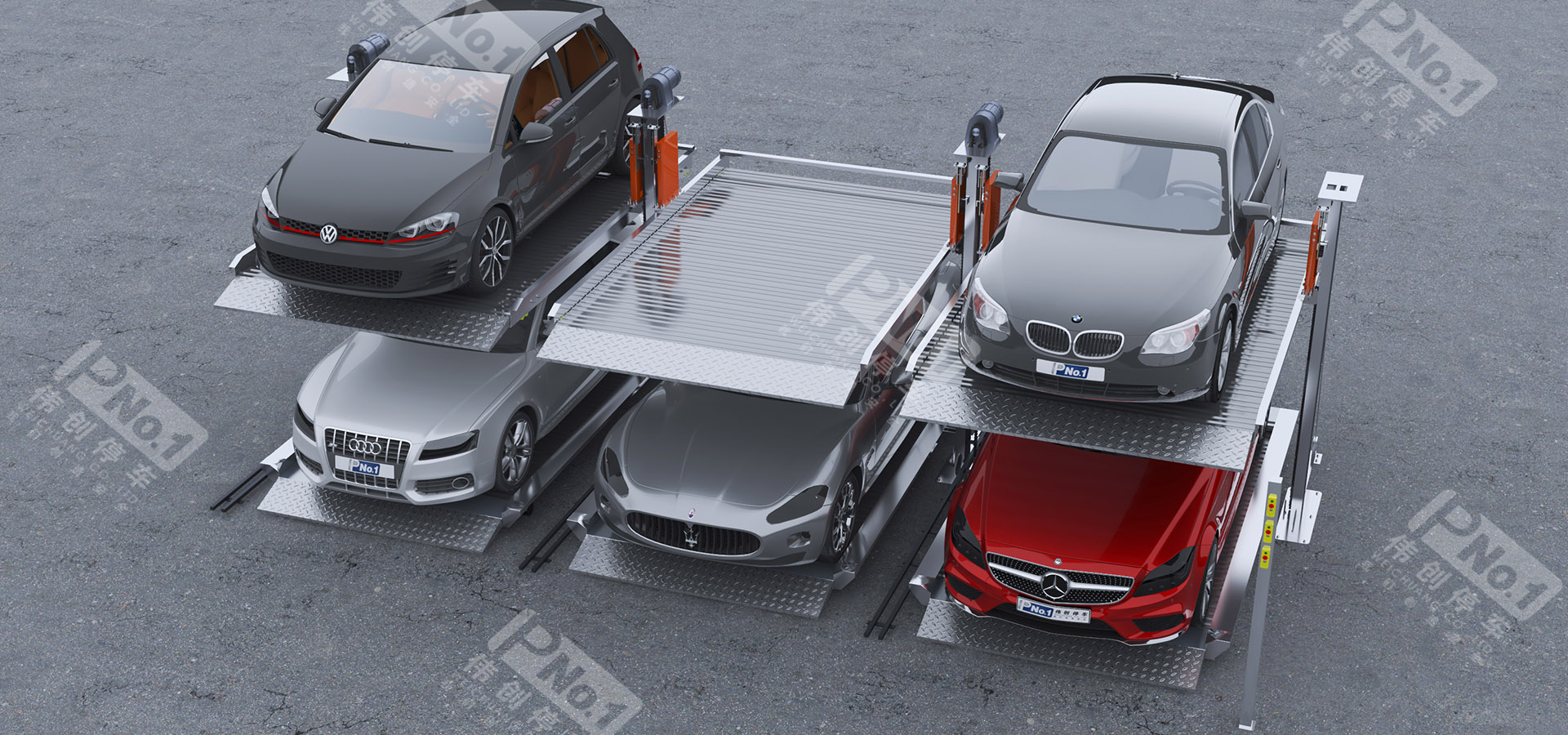

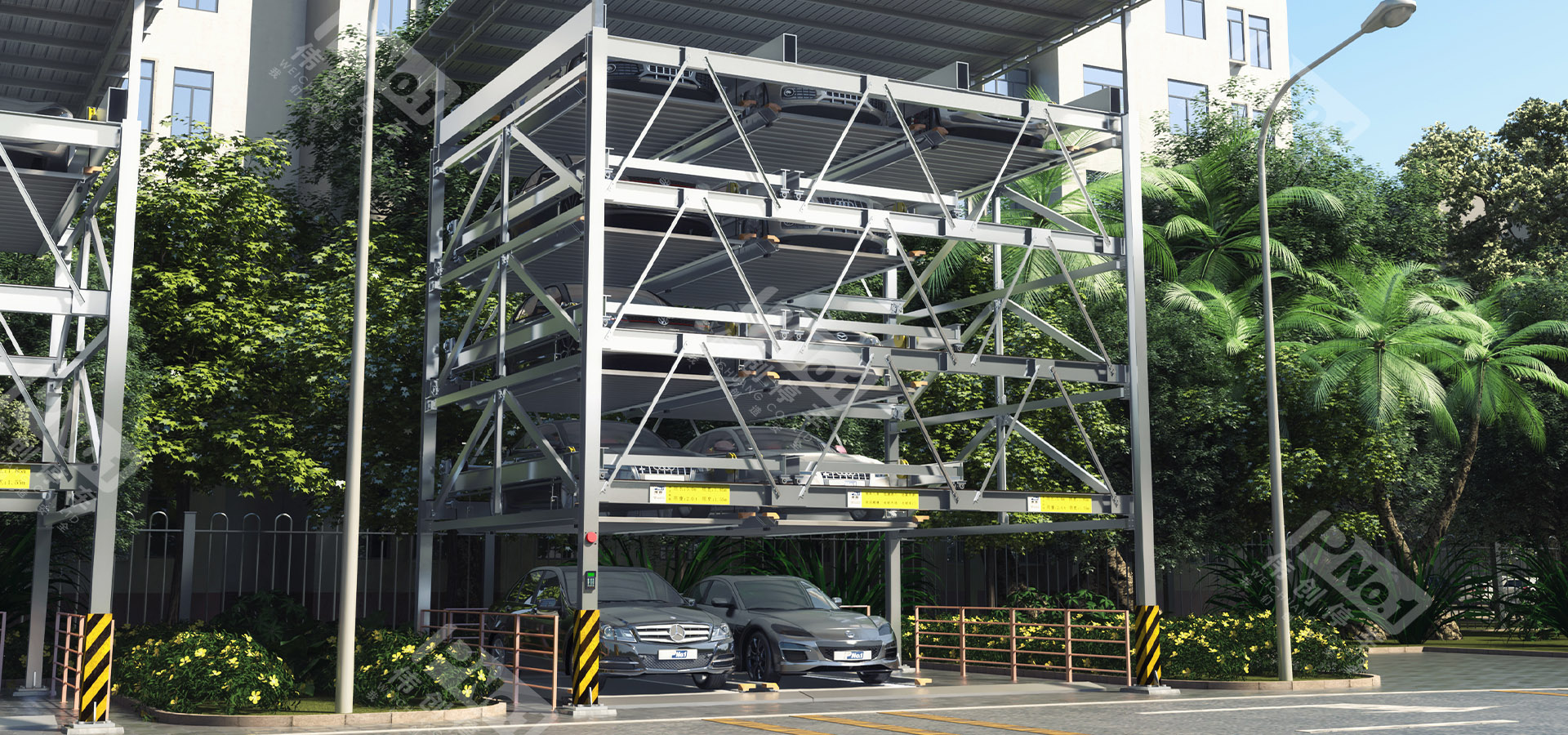

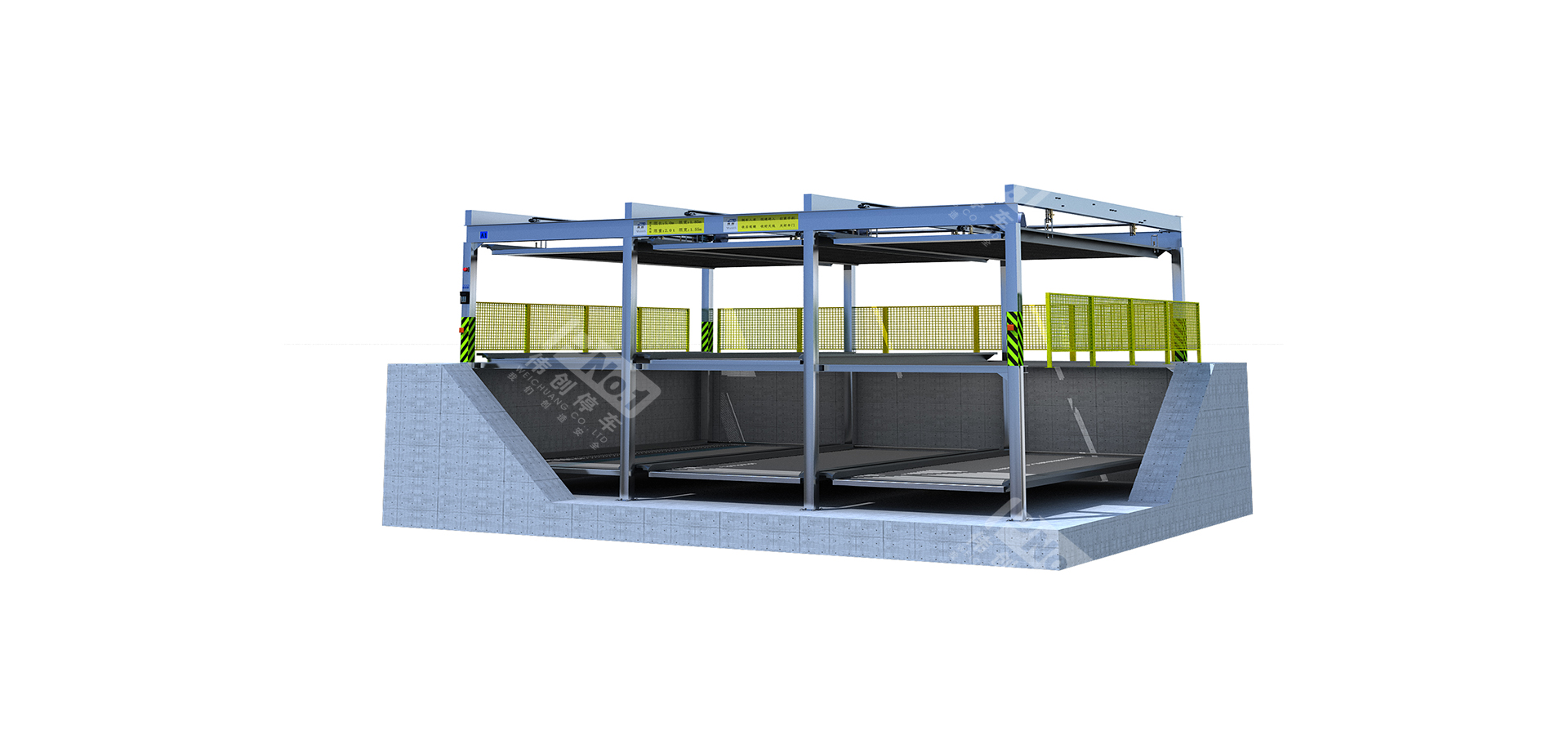

Rendering


CAD STRUCTURAL DIAGRAM

CAD Structural diagram


Two levels

PARAMETER

Equipment parameters


Capacity specifications
Sedan/SUV
Number of vehicles/number of floors that can be made
C (number of floors) * (N-1) (number of columns)+1 vehicle/2-8 floors
Vehicle pick-up time/clearance time
2nd floor for 30s
Rated speed
Lift 4.0-6.0m/min; Translation 6.0-8.0m/min
Lifting method
Motor+chain type/wire rope type
Control system
PLC system
Operating mode
IC card+number buttons/facial recognition

OPERATING PRINCIPLE

Operating rinciple


The lifting and lateral parking equipment generally adopts floors two to eight. The second floor is mostly used for underground parking lots, while the third to eighth floors are suitable for ground installation, including pit type. This type of parking equipment has a loading plate in each parking space. The loading plate reaches the ground level through lifting and lateral movement. The driver parks the stored cars on the loading plate or drives the parked cars on the loading plate to complete the access process. Suitable for real estate, hospitals, subway stations, commercial centers, and other places.

SIMILAR CASES

Similar cases


RENDERING

Rendering


CAD STRUCTURAL DIAGRAM

CAD Structural diagram


Multi-levels

PARAMETER

Equipment parameters


Capacity specifications
Sedan/SUV
Number of vehicles/number of floors that can be made
C (number of floors) * (N-1) (number of columns)+1 vehicle/2-8 floors
Vehicle pick-up time/clearance time
2nd floor for 30s
Rated speed
Lift 4.0-6.0m/min; Translation 6.0-8.0m/min
Lifting method
Motor+chain type/wire rope type
Control system
PLC system
Operating mode
IC card+number buttons/facial recognition

OPERATING PRINCIPLE

Operating rinciple


The lifting and lateral parking equipment generally adopts floors two to eight. The second floor is mostly used for underground parking lots, while the third to eighth floors are suitable for ground installation, including pit type. This type of parking equipment has a loading plate in each parking space. The loading plate reaches the ground level through lifting and lateral movement. The driver parks the stored cars on the loading plate or drives the parked cars on the loading plate to complete the access process. Suitable for real estate, hospitals, subway stations, commercial centers, and other places.

SIMILAR CASES

Similar cases


RENDERING

Rendering


CAD STRUCTURAL DIAGRAM

CAD Structural diagram


Pit type

PARAMETER

Equipment parameters


Capacity specifications
Sedan/SUV
Number of vehicles/number of floors that can be made
C (number of floors) * (N-1) (number of columns)+1 vehicle/2-8 floors
Vehicle pick-up time/clearance time
2nd floor for 30s
Rated speed
Lift 4.0-6.0m/min; Translation 6.0-8.0m/min
Lifting method
Motor+chain type/wire rope type
Control system
PLC system
Operating mode
IC card+number buttons/facial recognition

OPERATING PRINCIPLE

Operating rinciple


The lifting and lateral parking equipment generally adopts floors two to eight. The second floor is mostly used for underground parking lots, while the third to eighth floors are suitable for ground installation, including pit type. This type of parking equipment has a loading plate in each parking space. The loading plate reaches the ground level through lifting and lateral movement. The driver parks the stored cars on the loading plate or drives the parked cars on the loading plate to complete the access process. Suitable for real estate, hospitals, subway stations, commercial centers, and other places.

SIMILAR CASES

Similar cases


RENDERING

Rendering


CAD STRUCTURAL DIAGRAM

CAD Structural diagram


No avoidance

PARAMETER

Equipment parameters


Capacity specifications
Sedan/SUV
Number of vehicles/number of floors that can be made
2N (number of trains) vehicles/2 floors
Vehicle pick-up time/clearance time
2nd floor for 30s
Rated speed
Lift 4.0-6.0m/min; Translation 6.0-8.0m/min
Lifting method
Motor+chain type/wire rope type
Control system
PLC system
Operating mode
IC card+number buttons/facial recognition

OPERATING PRINCIPLE

Operating rinciple


The lifting and lateral parking equipment without avoidance is generally used on the second floor. Commonly used in underground parking lots. This type of parking equipment has a loading plate for each parking space, with a non yielding loading plate at the end of the lower parking space. The non yielding platform is equipped with a driving component to achieve the movement of the non yielding platform on the ground; When the vehicle loading plate needs to be stored (retrieved), the non avoidance platform plate leaves the parking space according to the set track, allowing the remaining vehicle loading plates to reach the ground level through lifting and lateral movement. The driver parks the stored cars on the vehicle loading plate or drives out the parked cars on the vehicle loading plate to complete the retrieval process. Suitable for real estate, hospitals, subway stations, commercial centers, and other places.

SIMILAR CASES

Similar cases
