GARAGE TYPE

Rotary type, PCX


Rotary type

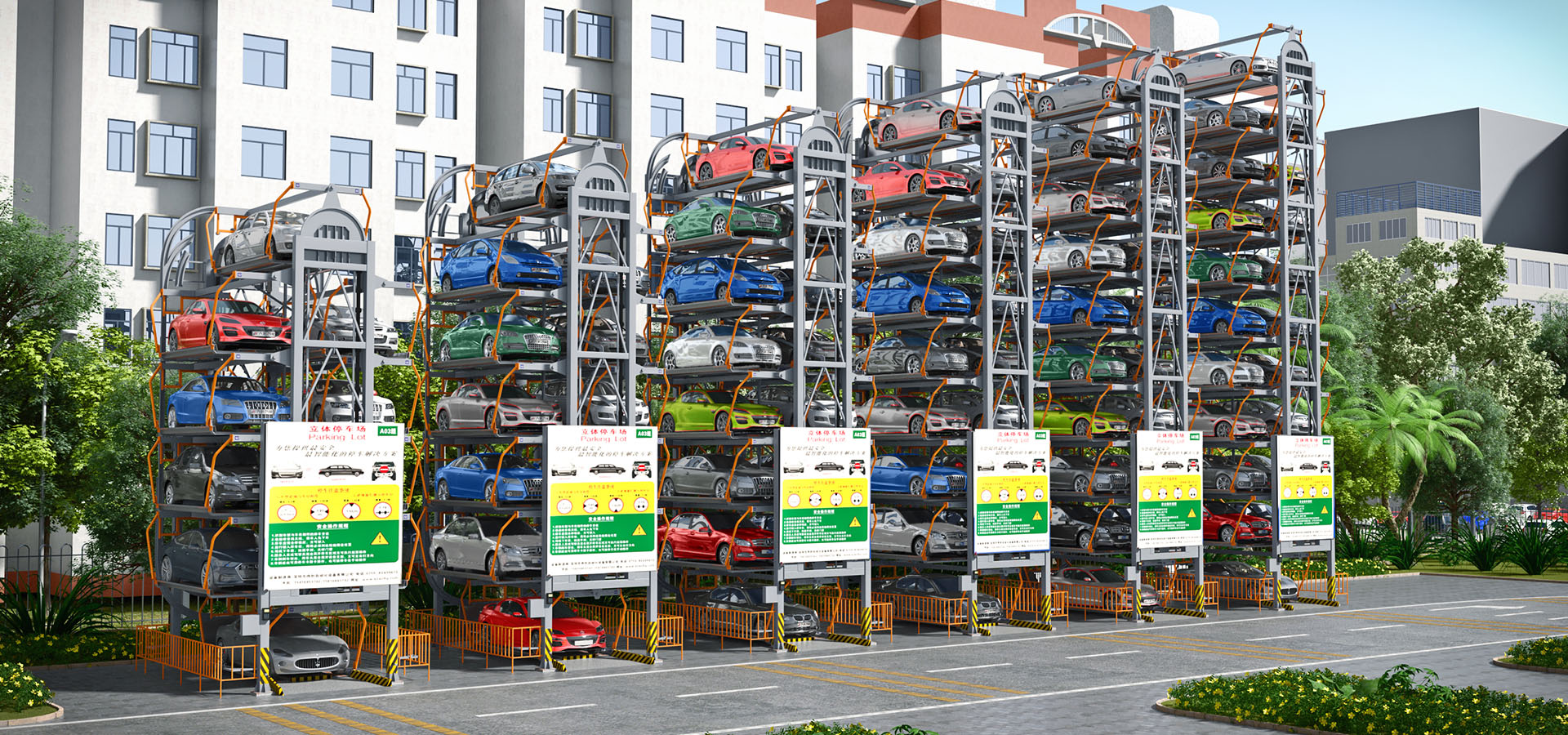

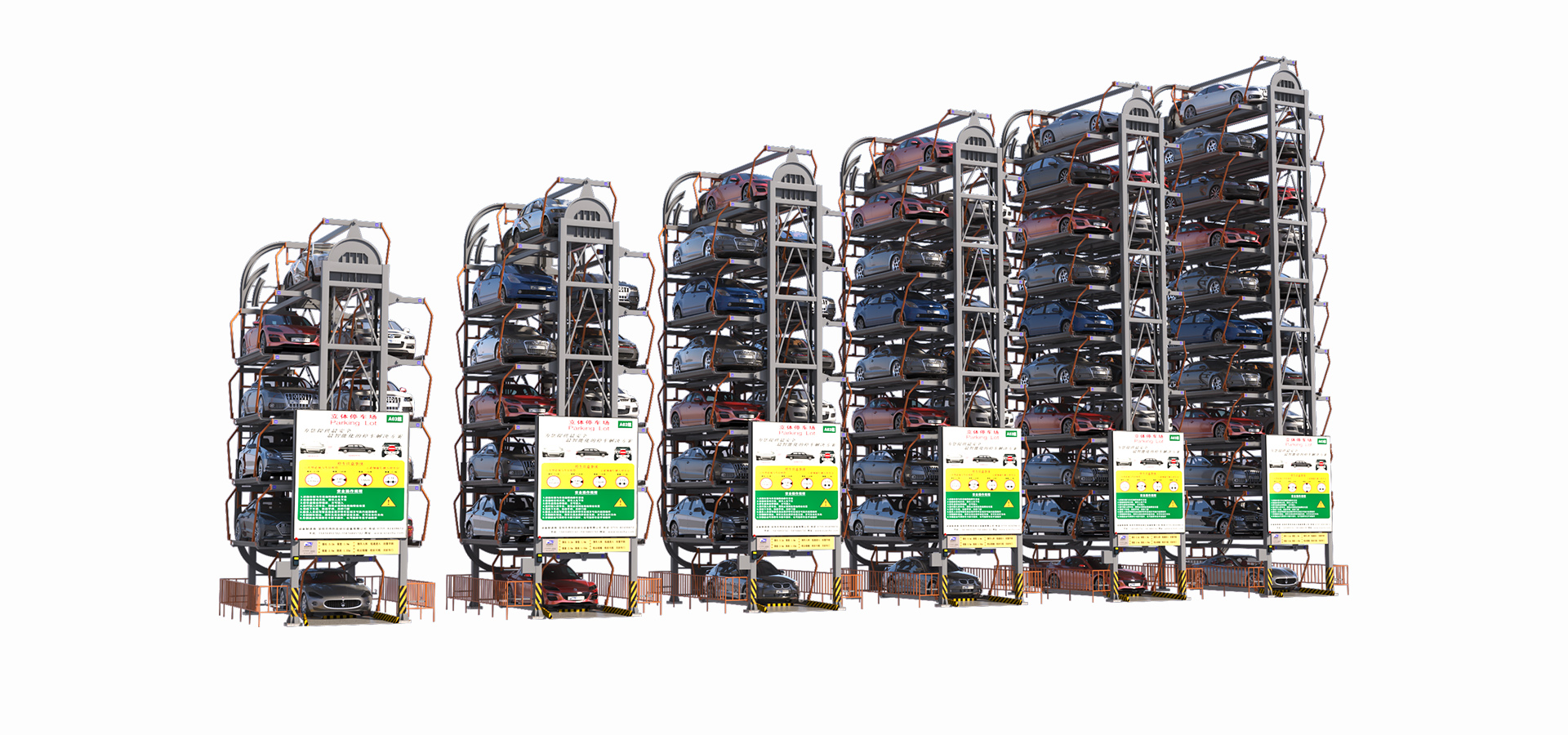

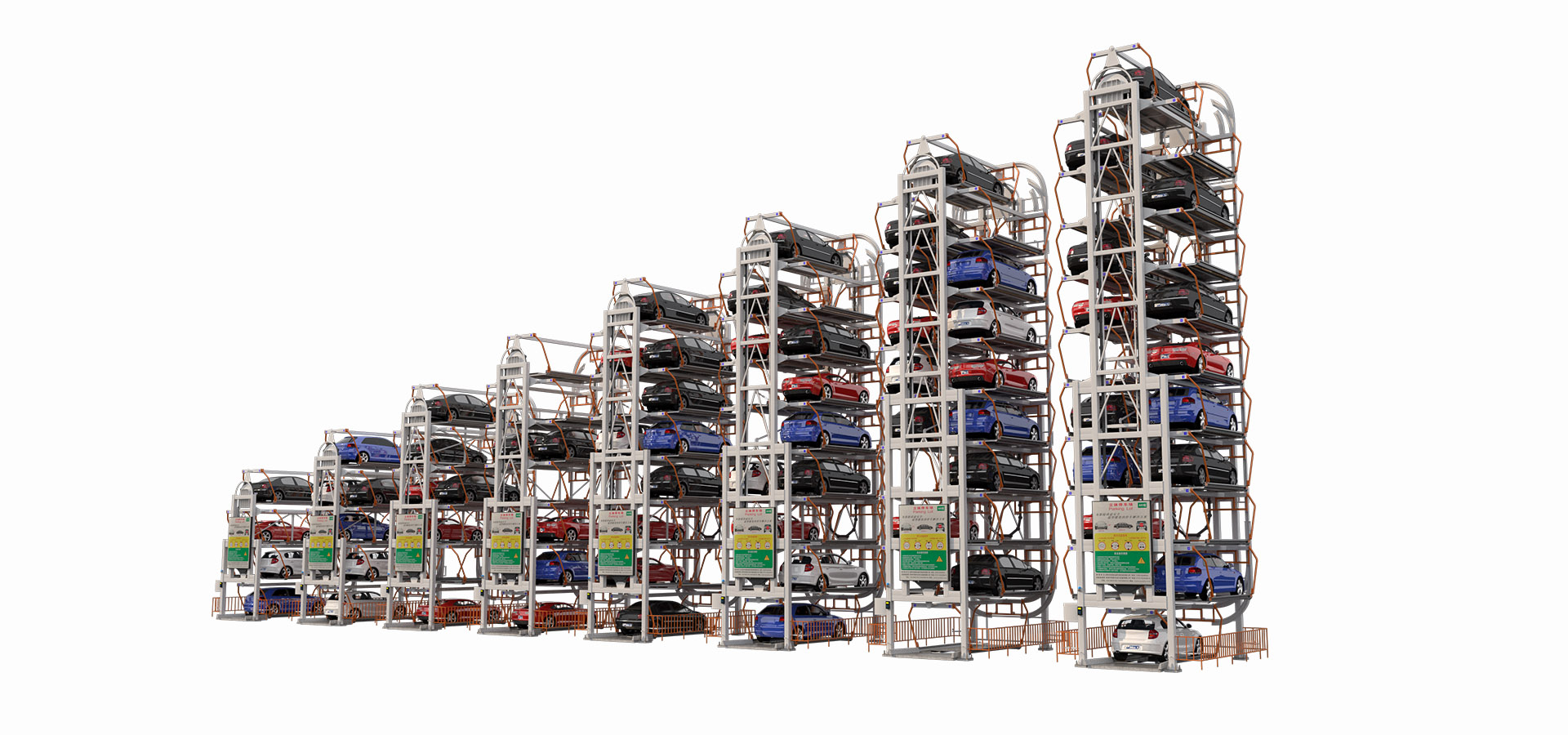

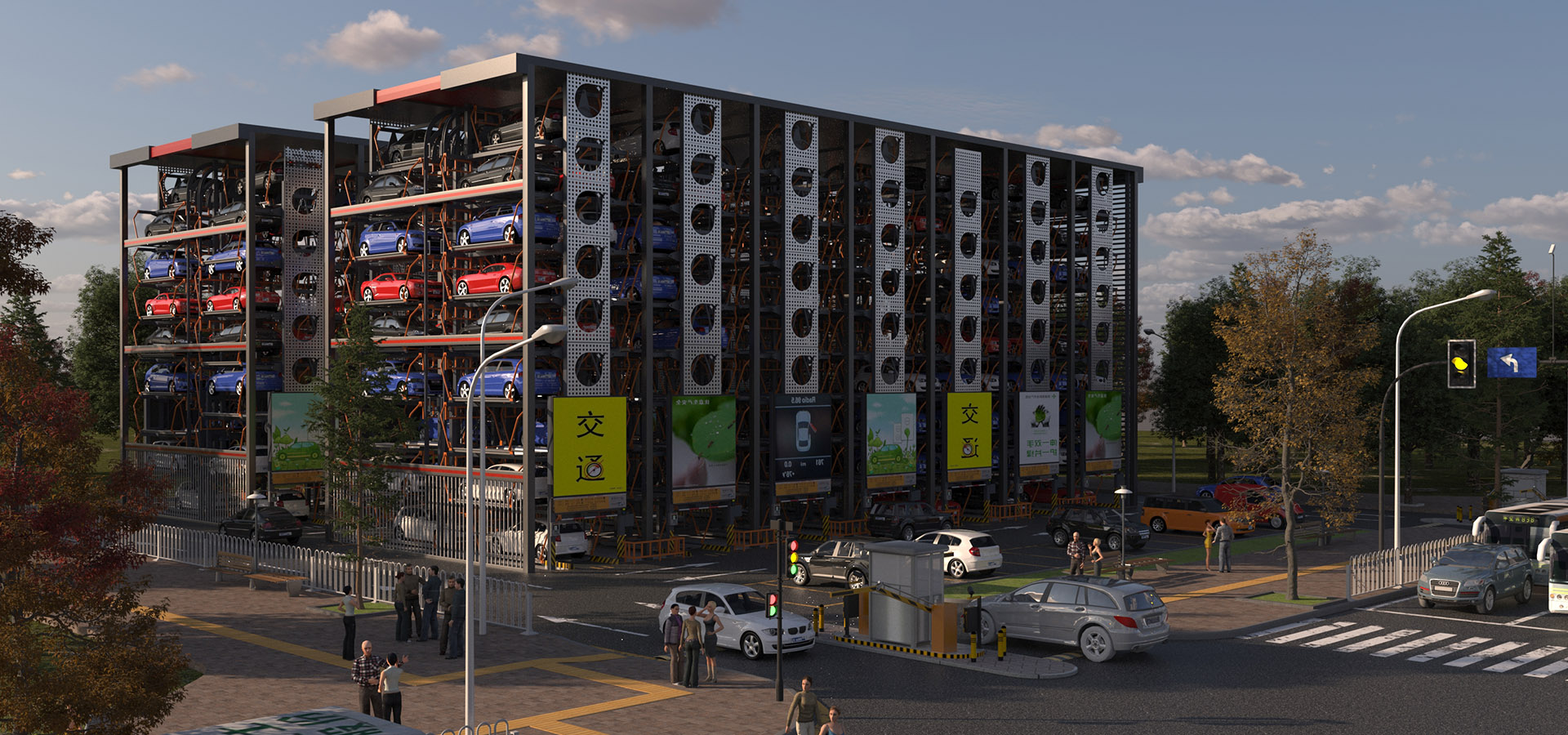

RENDERING

Rendering

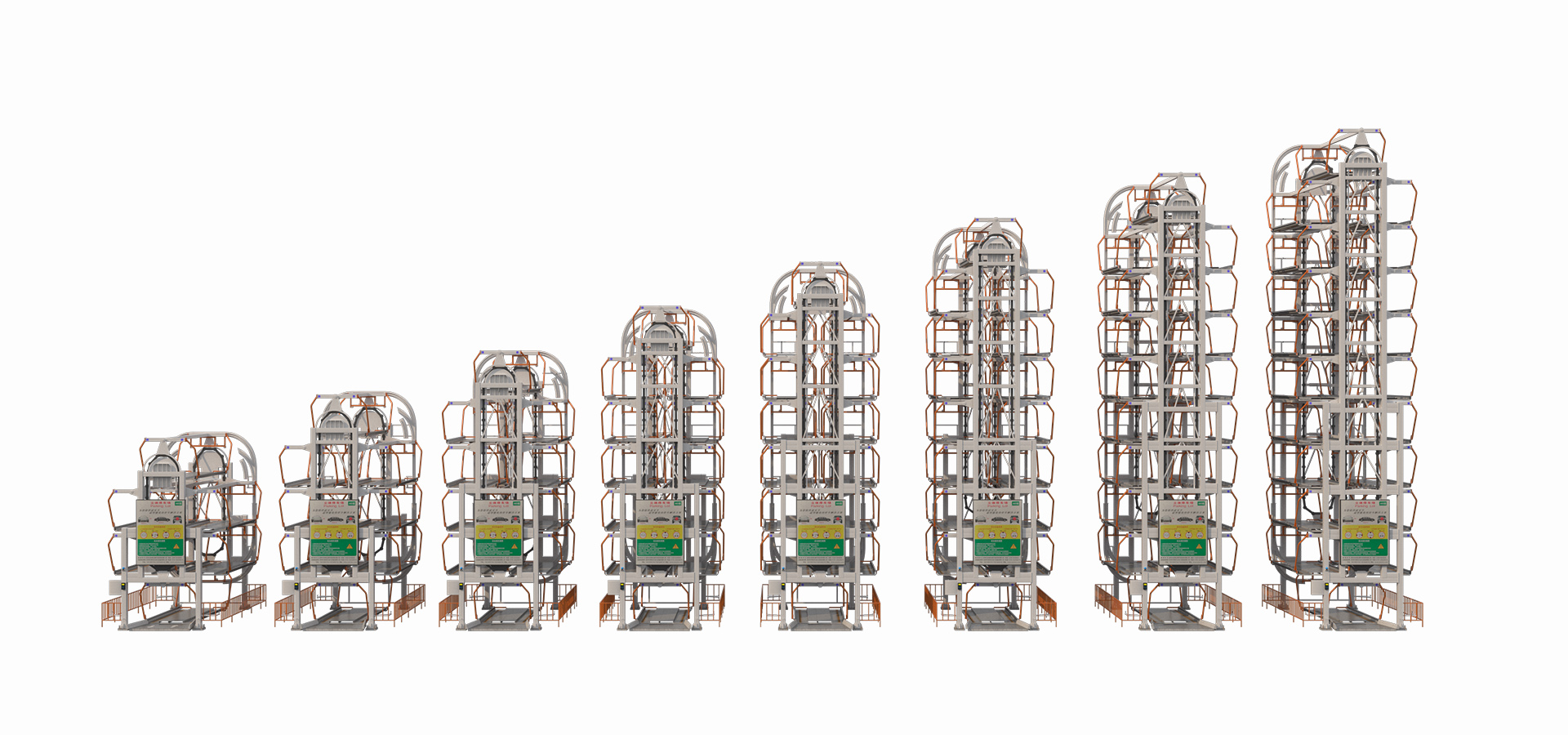

CAD STRUCTURAL DIAGRAM

CAD Structural diagram


Rotary type

PARAMETER

Equipment parameters


Capacity specifications
Sedan/SUV
Number of vehicles/number of floors that can be made
2N (number of floors) -2 vehicles/4-11 floors
Vehicle pick-up time/clearance time
45-85S/maximum clearance time 15min
Rated speed
Lift 4.0-6.0m/min/
control system
PLC system
Operation method
IC card+number buttons/facial recognition
Improvement methods
Motor+chain type

OPERATING PRINCIPLE

Operating rinciple


Multiple loading plates arranged in the vertical plane are used to access the car in a cyclic motion, inspired by the Ferris wheel in the amusement park. The vehicle resembles a tourist sitting in a suspended basket of the Ferris wheel. When the vehicle loading plate that needs to access the car moves in a clockwise/counterclockwise (nearest direction) cycle to the entrance and exit of the garage, the driver enters the garage to store or remove the car to complete the access process. It is commonly used in places where vehicles enter and exit hospitals, hotels, shopping malls, and other places.
